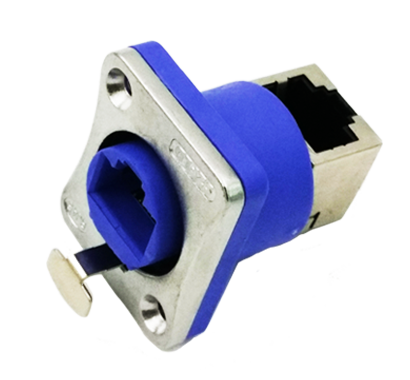

RJ45 Signal Socket 90 Angle Internet Access IP44
SN:FL-01-003
Link Mode: PUSH LOCK
Rated Current: 1.5A
Rated Voltage: 50V
Protection Level: IP44
Wire Specifications: Cat5, Cat6 Network Cable
Voltage Resistance: 1000V/per minute
Insulation Resistance: >500MΩ
Plugging Time: ≥500
Working Temperature: -20℃~80℃
Flame Retardant Level: 94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | PUSH LOCK | Rated Current: | 1.5A |
| Protection Level: | IP44 | Rated Voltage: | 50V | |
| Wire Specifications: | Cat5, Cat6 network cable | Voltage Resistance: | 1000V/per minute | |
| Insulation Resistance: | >500MΩ | Plugging Time: | ≥500 | |
| | Working Temperature: | -20℃~80℃ | Flame Retardant level: | 94-V0 |
2.Materials
| Shell Insulation Parts: | High Performance Engineering Plastics | |
| | Metal Shell Part: | Zinc Alloy Sandblasting Hard Chromium Plating |
| Conductive Terminal: | Beryllium Copper Gold Plated 2U" | |
| Hardware Single: | SUS 304 |
3.Hole Size

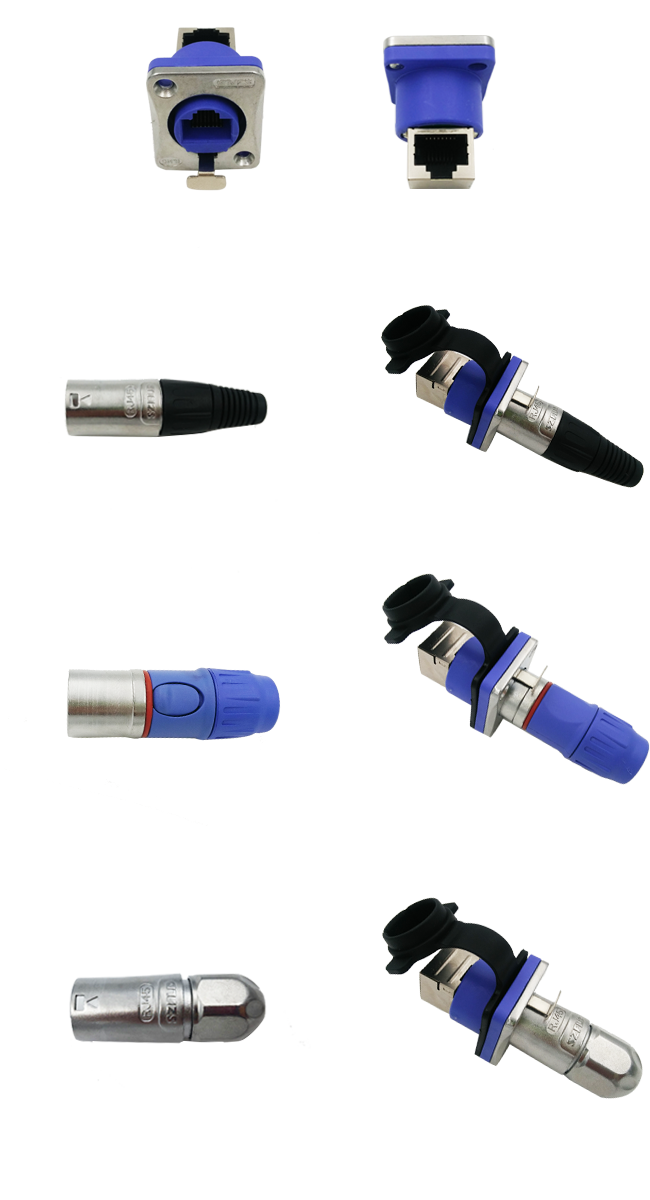

4.Real Shooting
5.Operation Guide
