16A 3P Female Socket IP44 IEC60309-5601
SN:FL-03-001
Link Mode: PUSH LOCK
Rated Current: 16A
Protection Level: IP44
Rated Voltage: 230V
Wire Specifications: 1.5-2.5mm²
Working Temperature: -20℃~80℃
Flame Retardant Level: 94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | PUSH LOCK | Working Temperature: | -20℃~80℃ |
| Protection Level: | IP44 | Rated Current : | 16A | |
| Wire Specifications: | 1.5-2.5mm² | Rated Voltage: | 230V | |
| Insulation Resistance: | >500MΩ | Flame Retardant Level: | 94-V0 |
2.Materials
| | Shell Insulation Parts: | High Performance Engineering Plastics |
| Metal Shell: | Zinc Alloy Sandblasting Hard Chromium Plating | |
| Conductive Terminal: | Beryllium Copper Gold Plated 2U" | |
| Hardware Single: | SUS 304 |

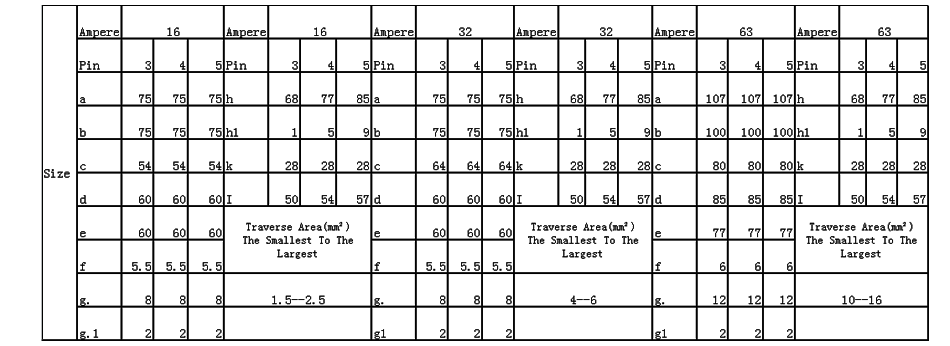

3.Data Parameter

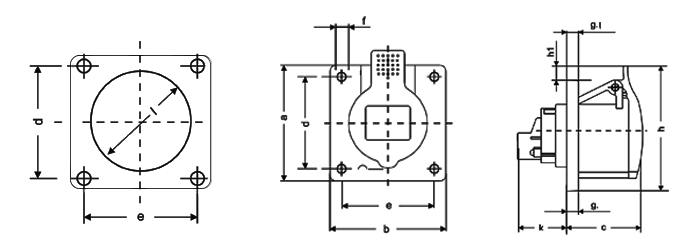

4.Hole Size

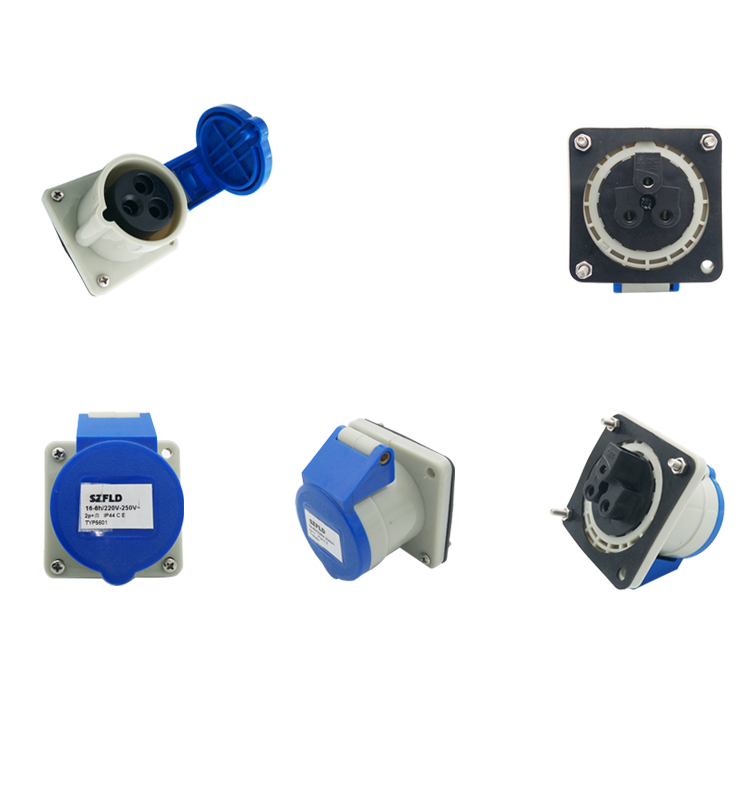

5.Real Shooting
