16A 5P Male Plug IP44 IEC60309-235

SN:FL-03-007

Link Mode: PUSH LOCK

Rated Current : 16A

Protection Level: IP44

Rated Voltage: 230V

Wire Specifications: 1.5-2.5mm²

Working Temperature: -20℃~80℃

Flame Retardant Level: 94-V0

SHARE
Product Info

  1.Specification Parameter



Link Mode:PUSH LOCKWorking Temperature:-20℃~80℃

Protection Level:IP44Rated Current:16A

Wire Specifications:1.5-2.5mm²Rated Voltage:230V

Insulation Resistance:>500MΩ
Flame Retardant Level:94-V0


  2.Materials



Shell Insulation Parts:High Performance Engineering Plastics

Metal Shell:

Zinc Alloy Sandblasting Hard Chromium Plating

Conductive Terminal:

Beryllium Copper Gold Plated 2U"

Hardware Single:

SUS 304

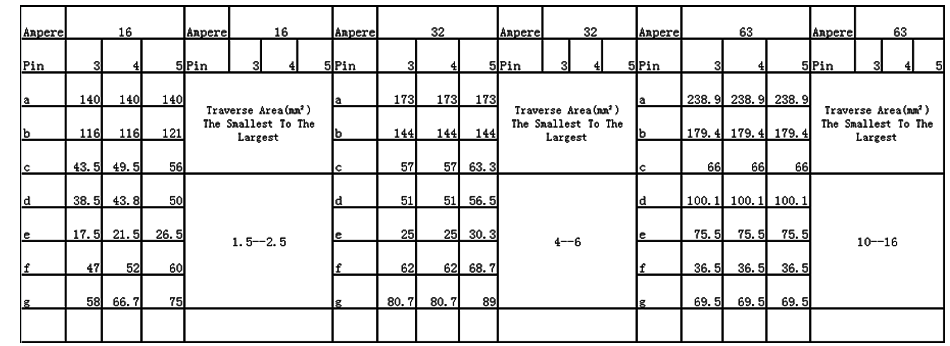

  3.Data Parameter

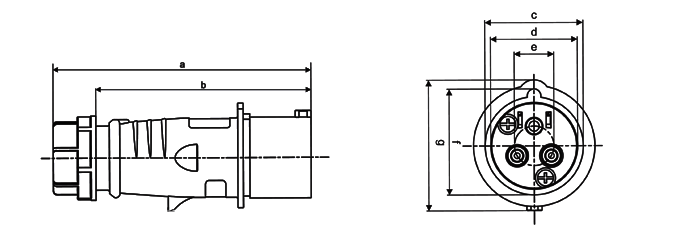

  4.Hole Size







  5.Real Shooting
