32A 5P Male Plug IP67 IEC60309-375

SN:FL-03-012

Link Mode: PUSH LOCK

Rated Current: 32A

Protection Level: IP67

Rated Voltage: 400V

Wire Specifications: 4-6mm²

Working Temperature: -20℃~80℃

Flame Retardant Level: 94-V0

SHARE
Product Info

  1.Specification Parameter



Link Mode:PUSH LOCKWorking Temperature:-20℃~80℃

Protection Level:IP67Rated Current:32A

Wire Specifications:4-6mm²Rated Voltage:400V

Insulation Resistance:>500MΩ
Flame Retardant Level:94-V0


  2.Materials



Shell Insulation Parts:High Performance Engineering Plastics

Metal Shell:

Zinc Alloy Sandblasting Hard Chromium Plating

Conductive Terminal:

Beryllium Copper Gold Plated 2U"

Hardware Single:

SUS 304

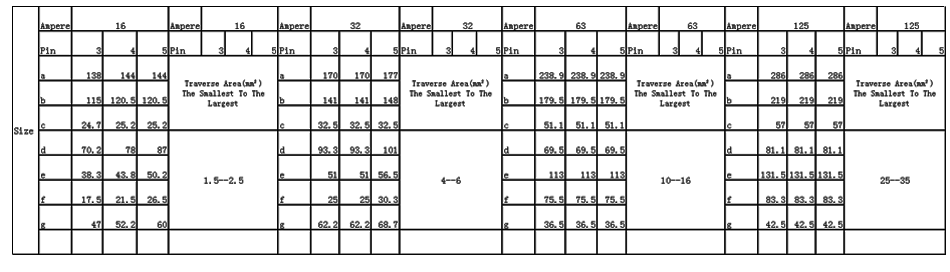

  3.Data Parameter

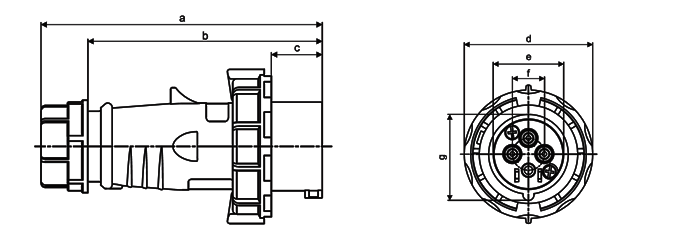

  4.Hole Size

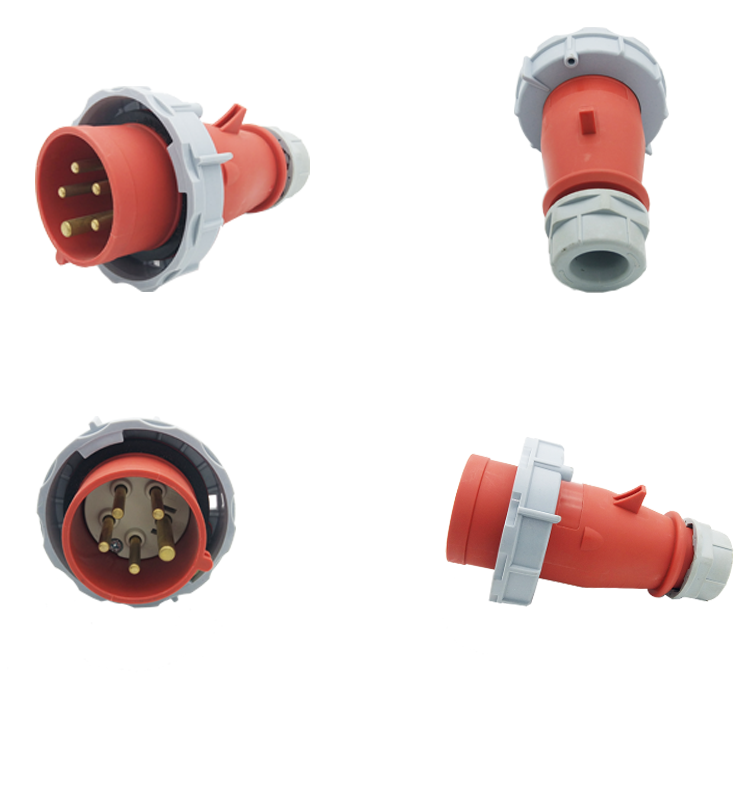

  5.Real Shooting
