32A 5P IP44 Connector
SN:FL-03-018
Link Mode: PUSH LOCK
Rated Current : 32A
Protection Level:IP44
Rated Voltage: 400V
Wire Specifications: 4-6mm²
Working Temperature: -20℃~80℃
Flame Retardant Level: 94-V0
SHAREProduct Info
1.Specification Parameter
| Link Mode: | PUSH LOCK | Working Temperature: | -20℃~80℃ | |
| Protection Level: | IP44 | Rated Current : | 32A | |
| Wire Specifications: | 4-6mm² | Rated Voltage: | 400V | |
| Insulation Resistance: | >500MΩ | Flame Retardant Level: | 94-V0 |

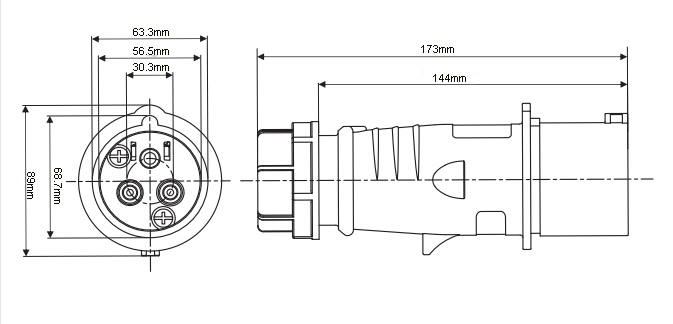

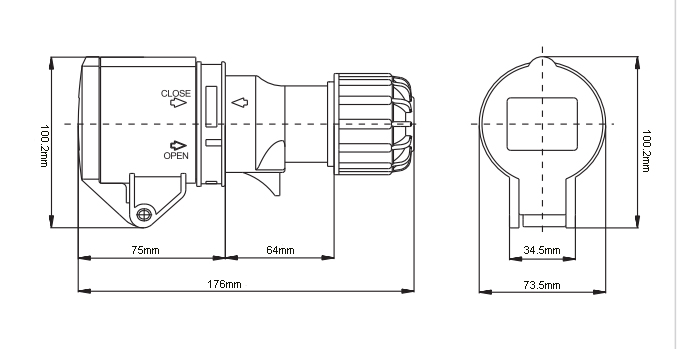

2.Hole Size

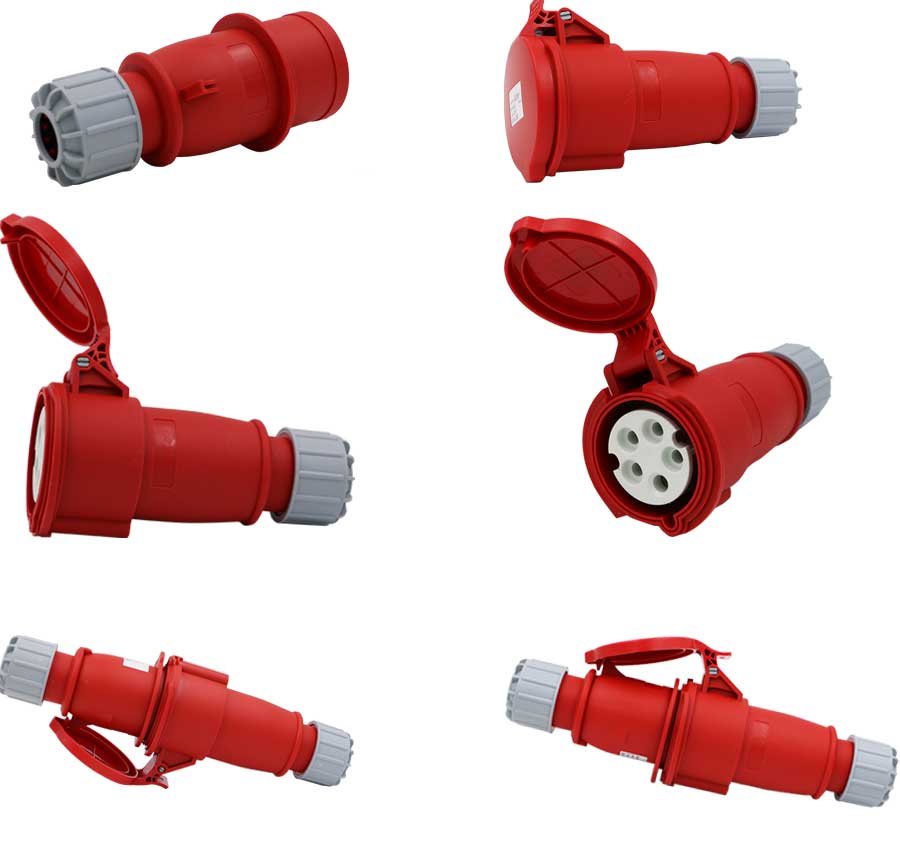

3.Real Shooting
