63A 5P IP67 Connector
SN:FL-03-020
Link Mode: PUSH LOCK
Rated Current : 63A
Protection Level:IP67
Rated Voltage: 400V
Wire Specifications: 10-16mm²
Working Temperature: -20℃~80℃
SHAREProduct Info
1.Specification Parameter
| Link Mode: | PUSH LOCK | Working Temperature: | -20℃~80℃ | |
| Protection Level: | IP67 | Rated Current : | 63A | |
| Wire Specifications: | 4-6mm² | Rated Voltage: | 400V | |
| Insulation Resistance: | >500MΩ | Flame Retardant Level: | 94-V0 |

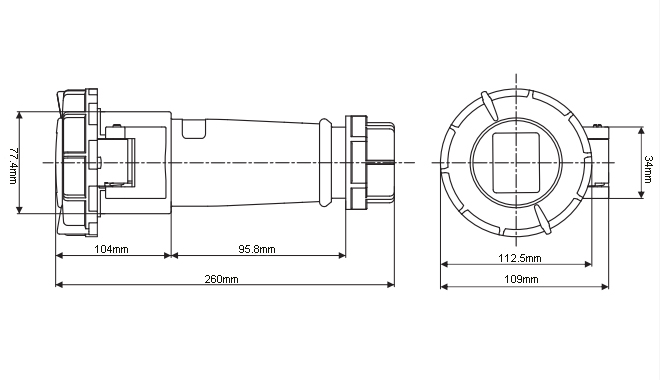

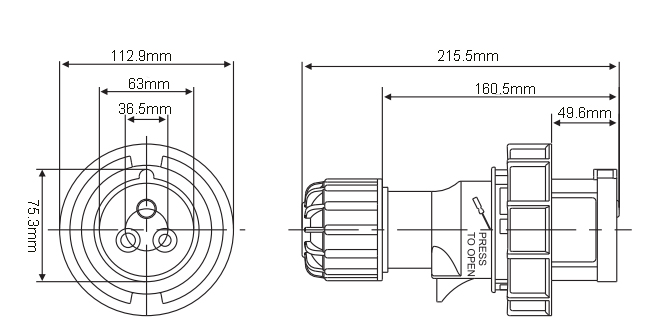

2.Hole Size

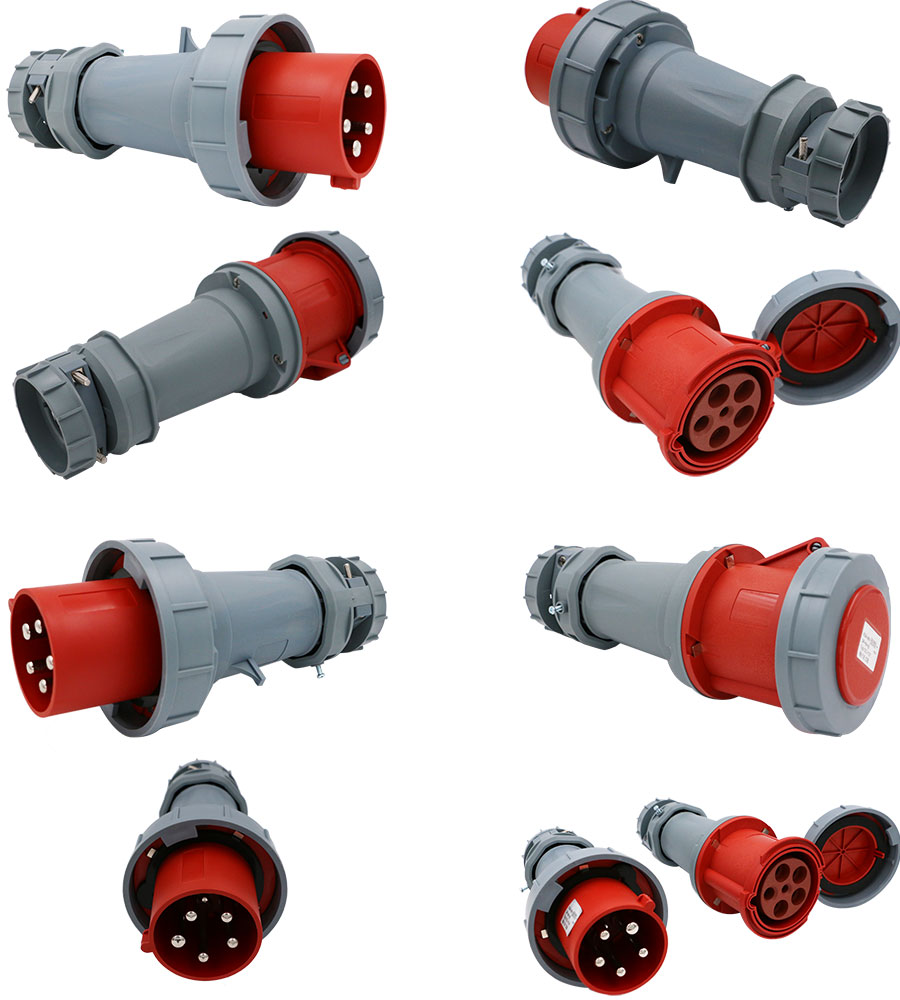

3.Real Shooting
