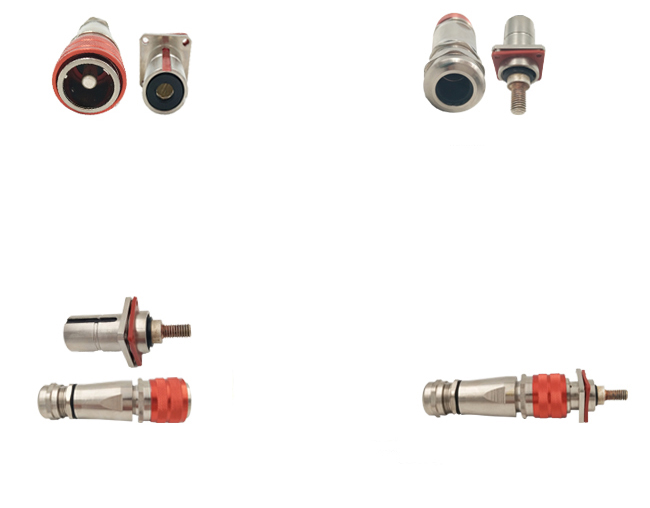

Push Pull Self-locking/Nut/IP67
SN:FL-04-001
Pin diameter: 6mm
Rated Voltage: 600V AC
Rated Current: 120A
Voltage Resistance: 2500V AC(normal temperature)
Insulation Resistance: 5000MΩ(normal temperature)
Plugging Time: ≥1000
Contact Resistance: Max0.5mΩ
Working Temperature: -40°C~125°C
SHAREProduct Info
1.Specification Parameter
| | Pin Diameter: | 6mm | Rated Current: | 120A |
| Rated Voltage: | 600V AC | Voltage Resistance: | 2500V AC | |
| Insulation Resistance: | 5000MΩ(normal temperature) | Plugging Time: | ≥1000 | |
| Working Temperature: | -40°C~125°C | Contact Resistance: | Max0.5mΩ | |
| Protection Level: | IP67 |

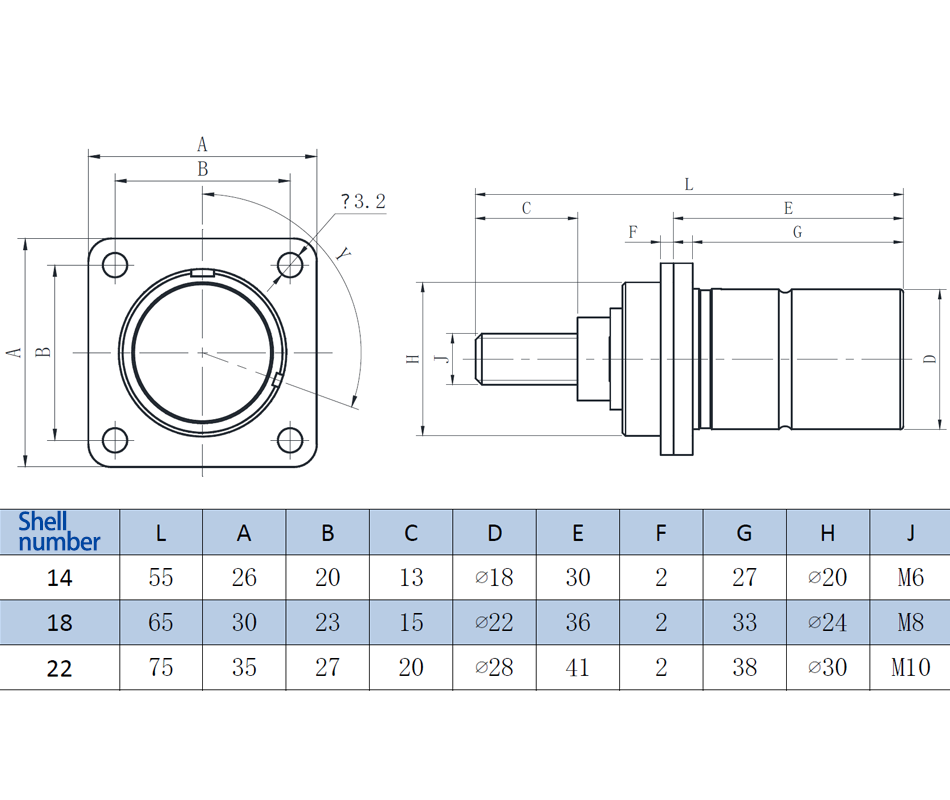

2.Hole Size
