Push Pull Self-locking/Nut/IP67

SN:FL-04-003

Pin diameter: 6mm

Rated Voltage: 600V AC

Rated Current: 120A

Voltage Resistance: 2500V AC(normal temperature)

Insulation Resistance: 5000MΩ(normal temperature)

Plugging Time:≥1000

Contact Resistance: Max0.5mΩ

Working Temperature: -40°C~125°C


SHARE
Product Info

  1.Specification Parameter



Pin Diameter:6mmRated Current:120A

Rated Voltage:600V ACVoltage Resistance:2500V AC

Insulation Resistance:5000MΩ(normal temperature)
Plugging Time:≥1000

Working Temperature:-40°C~125°CContact Resistance:Max0.5mΩ

Protection Level:IP67

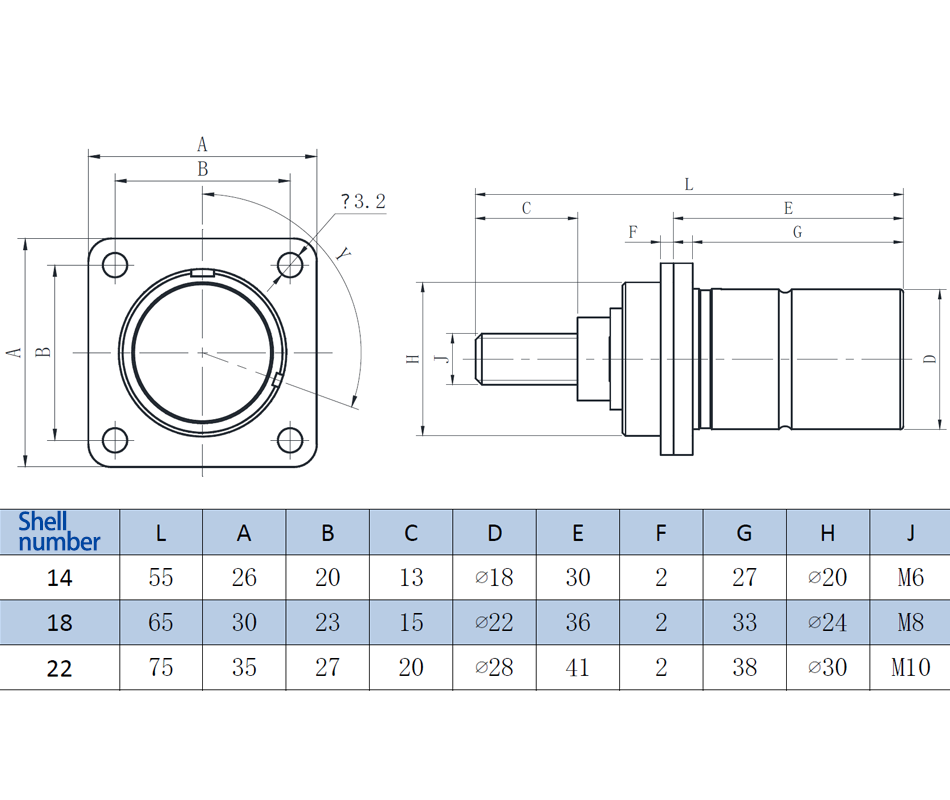

  2.Hole Size

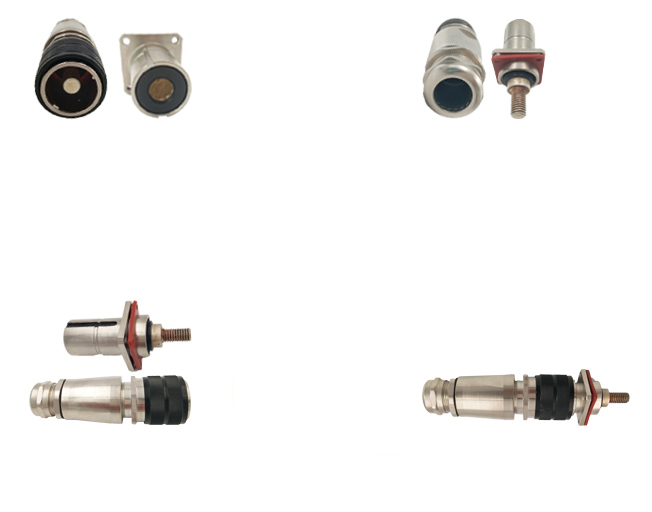

  3.Real  Shooting
