Rear Mounted Nut Socket SD13-4A
SN:FL-05-012
Link Mode: Welding, Pressing
Insert Mode: Thread Connection
Shell Material: Thermoplastic PA66
Insulator: Thermoplastic PPS High Temperature Resistant 260℃
Contact Core Number: ４
Contact Element Diameter(øMM): ø1×４
Contact Material: Copper (Gold Plated,1.5m Thickness)
SHAREProduct Info
1.Material And Technical Parameters
| | Link Mode: | Welding, Pressing | Insert Mode: | Thread Connection |
| Shell Material: | Thermoplastic PA66 | Plugging Time: | >500 | |
| Rated Current(A): | 5A | Contact Resistance(MΩ): | 5 | |
| Withstand Voltage: | 1500V | Working Voltage(AC.V): | 380V | |
| Insulator: | Thermoplastic PPS High Temperature Resistant 260℃ | Temperature Range: | －45℃--85℃ | |
| Contact Material: | Copper (Gold Plated,1.5m Thickness) | Insulation Resistance(MΩ): | 2000 |

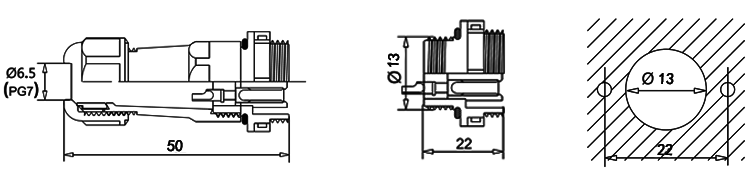

2.Hole Size

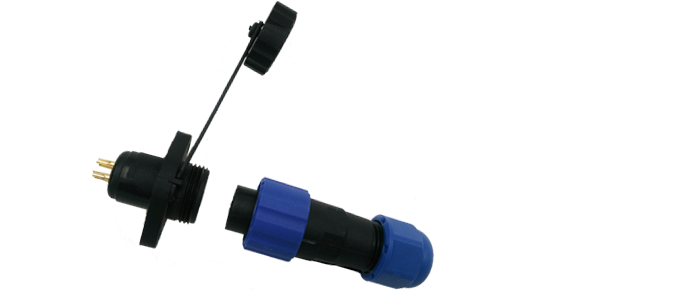

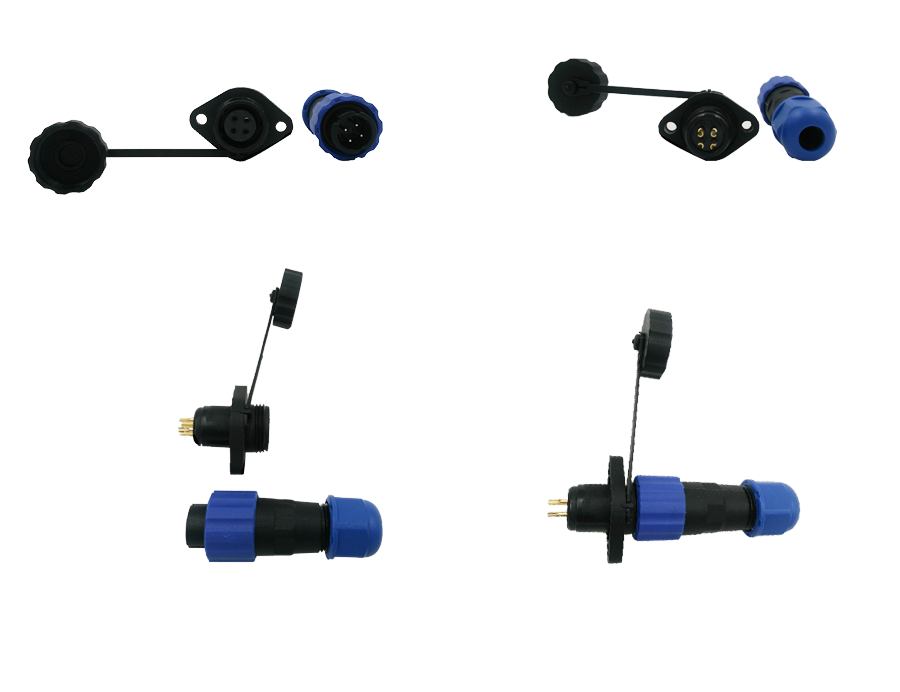

3.Real Shooting
4.Operation Guide
