Signal/Fixed Installation/8P/IP44
SN:FL-06-002
Link Mode: Quick Lock
Rated Current: 1.5A
Rated Voltage: 50V(DC)
Protection Level: IP44
Wire Specifications: Cat6,Cat5 Network Cable
Voltage Resistance: 1000V(DC)
Insulation Resistance: >500MΩ
Plugging Time: ≥500
Working Temperature: -20℃~80℃
Flame Retarded Level: 94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | Quick Lock | Rated Current: | 1.5A |
| Protection Level: | IP44 | Rated Voltage: | 50V(DC) | |
| Wire Specifications: | Cat6, Cat5 Network Cable | Voltage Resistance: | 1000V(DC) | |
| Insulation Resistance: | >500MΩ | Plugging Time: | ≥500 | |
| Working Temperature: | -20℃~80℃ | Flame Retardant Level: | 94-V0 |
2.Material
| Shell Insulation Parts: | High Performance Engineering Plastics | |
| | Metal Shell: | Zinc Alloy Hard Chromium Plating |
| Conductive Terminal: | Beryllium Copper Gold Plating | |
| Hardware Single : | SUS 304 |

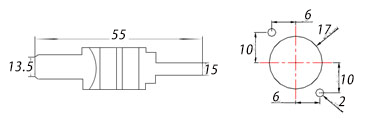

3.Hole Size

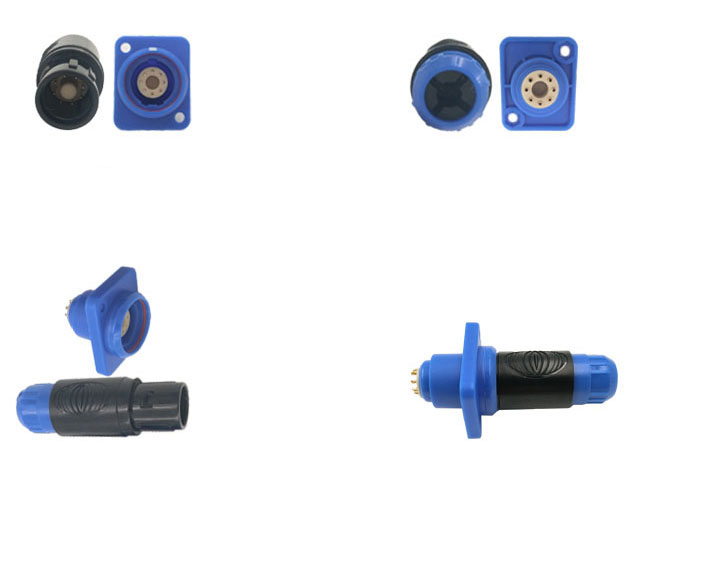

4.Real Shooting
