Power + Signal 2+1/IP44
SN:FL-06-004
Link Mode: Quick Lock
Rated Current: 1.5A
Rated Voltage: 50V(DC) 250V(AC)
Protection Level: IP44
Wire Specifications: Cat6,Cat5 Network Cable
Voltage Resistance: 1000V(DC) 2500V(AC)
Insulation Resistance: >500MΩ
Plugging Time: ≥500
Working Temperature: -20℃~80℃
Flame Retarded Level: 94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | Quick Lock | Rated Current: | 1.5A |
| | Protection Level: | IP44 | Rated Voltage: | 50V(DC) 250V(AC) |
| Wire Specifications: | Cat6, Cat5 network cable | Voltage Resistance: | 1000V(DC) 2500V(AC) | |
| Insulation Resistance: | >500MΩ | Plugging Time: | ≥500 | |
| Working Temperature: | -20℃~80℃ | Flame Retardant Level: | 94-V0 |
2.Material
| | Shell Insulation Parts: | High Performance Engineering Plastics |
| Metal Shell: | Zinc Alloy Hard Chromium Plating | |
| Conductive Terminal: | Beryllium Copper Gold Plating | |
| Hardware Single : | SUS 304 |

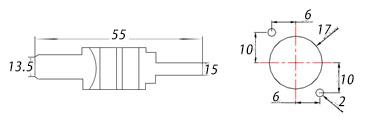

3.Hole Size

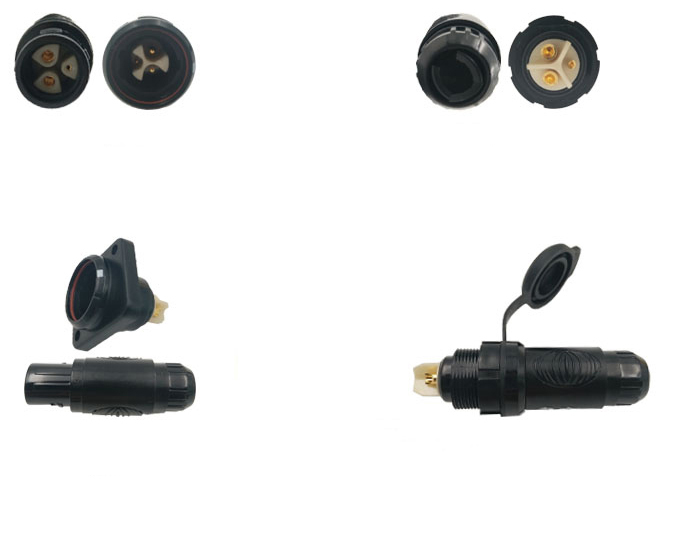

4.Real Shooting
