Power + Signal 3+9/IP65
SN:FL-06-006
Link Mode: 1/4Quick Bayonet Link
Rated Current: 3Pins(big)24A 9Pins(small)5A
Voltage Resistance: 1000V(DC) 2500V(AC)
Protection Level: IP65
Plugging Time: ≥500
Working Voltage: 50V(DC) 250V(AC)
Insulation Resistance: 2000MΩ
Working Temperature: -45℃~120℃
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | 1/4Quick Bayonet Link | Rated Current: | 3pins(big)24A 9pins(small)5A |
| Voltage Resistance: | 1000V(DC)2500V(AC) | Protection Level: | IP65 | |
| Plugging Time: | ≥500 | Working Voltage: | 50V(DC) 250V(AC) | |
| Insulation Resistance: | 2000MΩ | Working Temperature: | -45℃~120℃ |
2.Material
| | Contact Resistance: | Welded |
| Shell Material: | Plastic PA66+ Anti-UV Agent (Enhanced Flame Retardant) | |
| Male/Female: | Cu( Gold Plating ) | |
| Waterproof Ring: | Silica Gel |

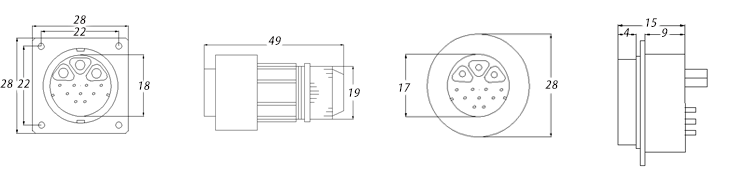

3.Hole Size

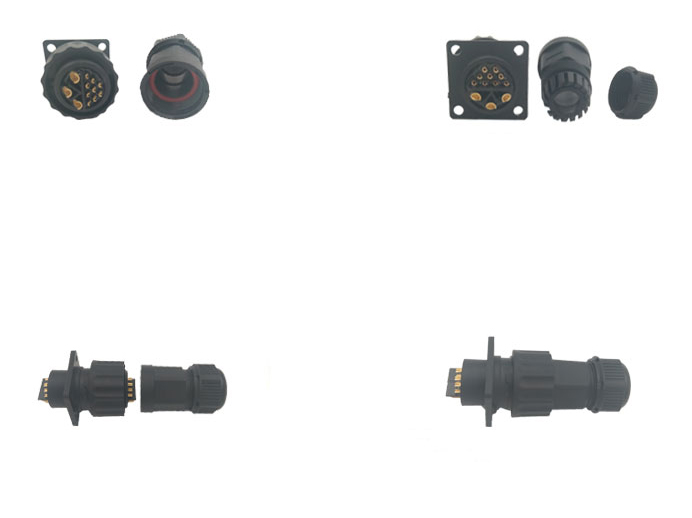

4.Real Shooting
