Male Plug/Bent/3+9
SN:FL-06-011
Pin Diameter: Power 2.0 Signal 0.8
Working Current: Power 20A Signal 5A
Voltage Resistance: 800V(DC) 2500V(AC)
Protection Level: IP65
Insulation Resistance: 1000MΩ
Plugging Time: ≥500
SHAREProduct Info
1.Specification Parameter
| | Pin Diameter: | Power 2.0 Signal 0.8 | Working Current: | Power 20A Signal 5A |
| Voltage Resistance: | 800V(DC) 2500V(AC) | Protection Level: | IP65 | |
| | Insulation Resistance: | 1000MΩ | Plugging Time: | ≥500 |
2.Material
| Material: | High Temperature Nylon | |
| Conductive Terminal: | Copper Gold Plated 2U" |

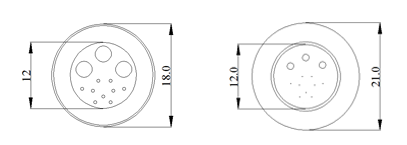

3.Hole Size

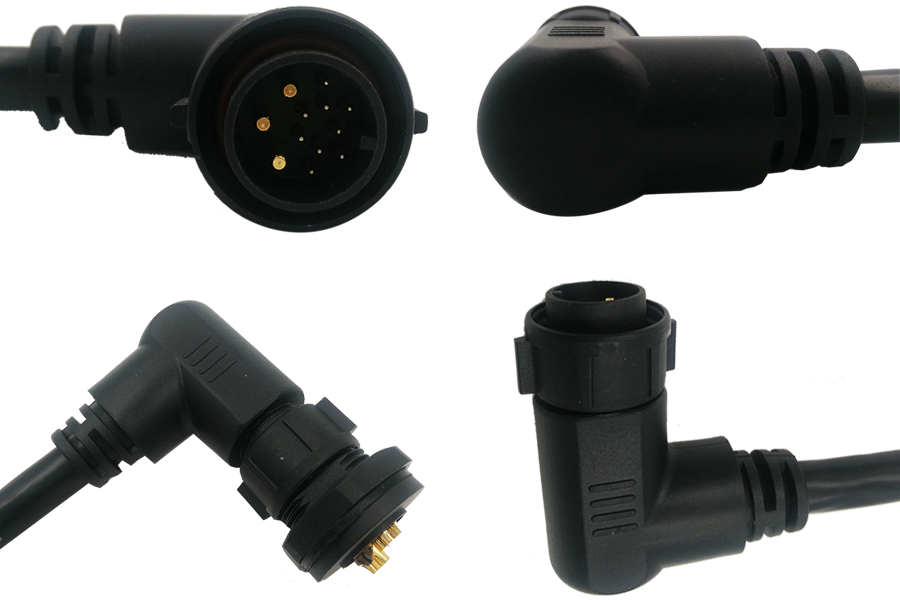

4.Real Shooting
