Socket/RJ45 to RJ45

SN:FL-07-001

Contact Resistance: <10

Dielectric Strength: 1kVdc

Frequency Range: 1-100

Insulation Resistance: >0.5GΩ

Rated Current Per Contact: 1.5A

Rated Voltage: 50V

Transmission Performance: CAT5e

Following Standard: TIA/EIA586B,IEC11801


SHARE
Product Info

1.Electrical Parameters


                    Contact Resistance: <10Dielectric Strength: 1kVdc

Frequency Range: 1-100MHz                Insulation Resistance: >0.5GΩ

Rated Current Per Contact: 1.5ARated Voltage: 50V

Transmission Performance: CAT5eFollowing Standard: TIA/EIA586B,IEC11801


2.Mechanical Parameters




Insert Pressure: ≤20NPull Out Pressure: ≤20N
                    Service Life: >1000Surface Plate Thickness: max4mm

Locking Device:


Key card lock
Base Shape: D

Temperature Range: -30°C~80°CFlammability: UL94V-0


3.Material


                    Contact Plating: 0.2μm Au over Ni plating                Contact: Bronze(CuSn8)

Insulator: PBTP 15% GRShell: Zinc diecast(ZnAl4Cu1)

Shell Plating:
Nickel

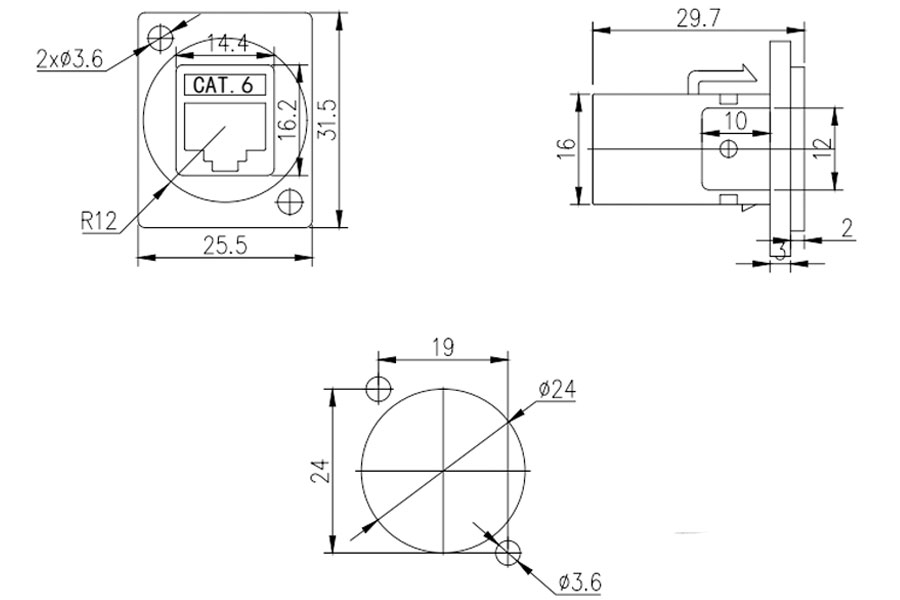

4.Hole Size

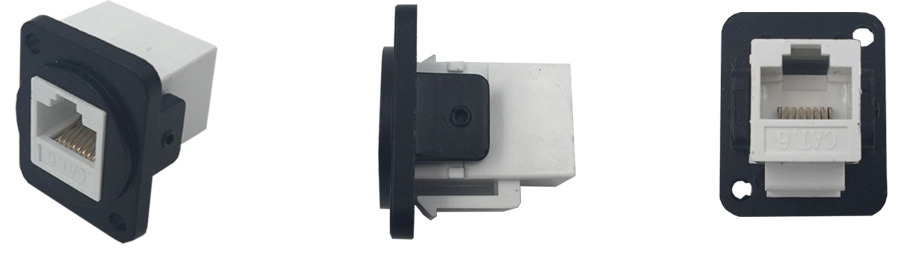

5.Real Shoothing
