JH24-USB

SN:FL-07-005

Wire Specification: 0.15m²~0.2m²/26~24 AWG

Line Diameter Range: Ф5.5mm~Ф7mm

Contact Number: 9PIN(USB3.0)&4PIN(USB2.0)

Rated Current: 1.5A

Rated Voltage: 30V

Contact Resistance: <30mΩ


SHARE
Product Info

1.Electrical Parameters




Wire Specification: 0.15m²~0.2m²/26~24 AWGLine Diameter range: Ф5.5mm~Ф7mm

Contact Number: 9PIN(USB3.0)&4PIN(USB2.0)                     Rated Current: 1.5A

Rated Voltage: 30VContact Resistance: <30mΩ

Protection Level: IP67Working Temperature: -40℃~80℃

Voltage Resistance: 2500V/per minuteFlame Retardant level: UL94-V0

Insulation Resistance: >500mΩLink Mode: 1/4Clip Speed

Plugging Time: >500Shell Material: PA66


2.Material




Contact Material: Contact terminal                   Waterproof Ring: Silica gel

Connection Mode: Welding type

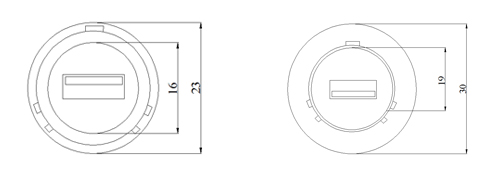

3.Hole Size

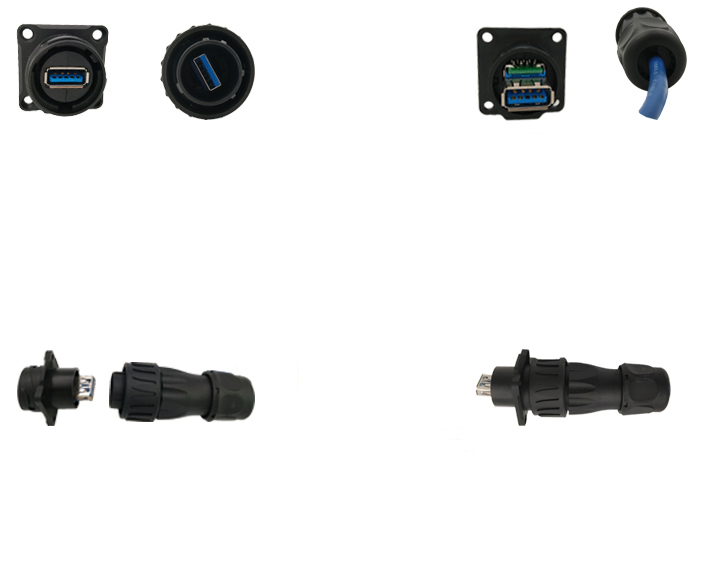

5.Real Shoothing
