M15 Two-core Branch Box
SN:FL-08-001
Link Mode:Threaded Connection
Protection Level: IP67/IP68
Wire Specifications: 0.75mm²~1.0mm²
Rated Current: 10A
Rated Voltage: 250V
Plugging Time: ≥500
Working Temperature: -40℃~105℃
Flame Retardant Level: UL94-V0
SHAREProduct Info
1.Specification Parameter
| | Link Mode: | Threaded Connection | Protection Level: | IP67/IP68 |
| Wire Specifications: | 0.75mm²~1.0mm² | Rated Current: | 10A | |
| Rated Voltage: | 250V | Plugging Time: | ≥500 | |
| Working Temperature: | -40℃~105℃ | Flame-retarded Rating: | UL94-V0 |
2.Material
| | Shell Insulation: | High Performance Engineering Plastics |
| Copper needle, Copper hole: | Hpb59-1 Copper Alloy | |
| Electroplating: | Gold Plated 2U" | |
| Plastic: | Fire Resistant To High Temperature V0 PBT |

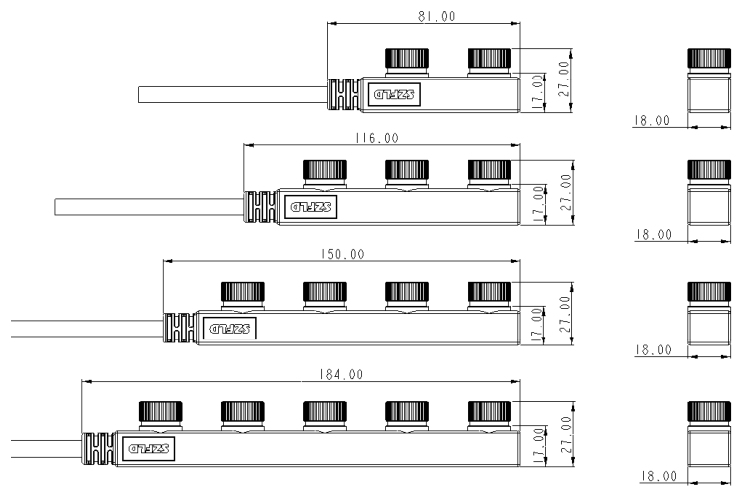

3.Hole Size

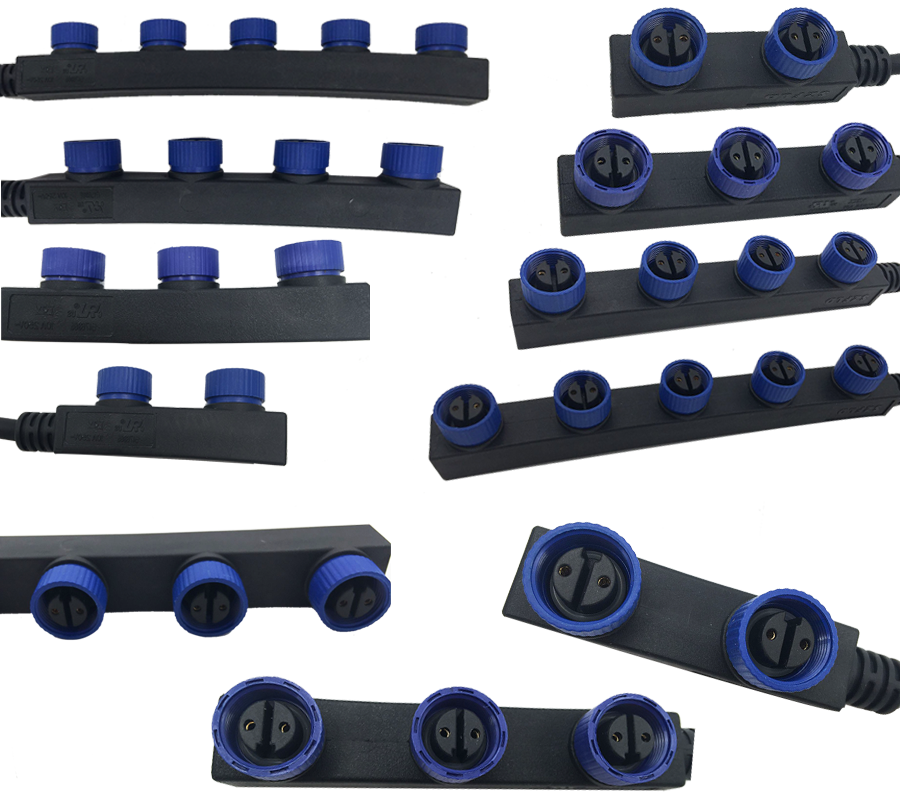

4.Real Shooting
