YS30AType Single Motor Automatic Cutting Meat Slicer Machine
SN:FT-07-002
Rated Input Power: Three-Phase 380V 0.85KW
Single-phase 220V 0.85KW
Work Efficiency: 5000 pieces/hour two rows
Frequency: 50Hz
Cutting Size: 460×220×130mm
Cutting Thickness: 0-16mm
Diameter Of Round Knife: 300mm
Specification: 770×600×690mm
N.W.: 58kg
SHAREProduct Info
1.Specification Parameter
| | Rated Input Power: | Three-Phase380V 0.85KW Single-phase220V 0.85KW | Work Efficiency: | 5000pieces/hour two rows |
| Frequency: | 50Hz | Cutting Size: | 460×220×130mm | |
| Cutting Thickness: | 0-16mm | Diameter Of Round Knife: | 300mm | |
| N.W.: | 58kg | Specification: | 770×600×690mm |
２.Part Name
| | １ | Clutch Handle | 8 | Meat Pole |
| ２ | Switch Button | 9 | Round Knife | |
| ３ | The Thickness Adjusts The Hand | 10 | Cutterhead | |
| ４ | Meat Table | 11 | Sharpening Button | |
| ５ | Meat Unloading Platform | 12 | Grease Hole | |
| 7 | Locking Button For Top Meat Lever | 13 | Lock Button For Knife Holder |

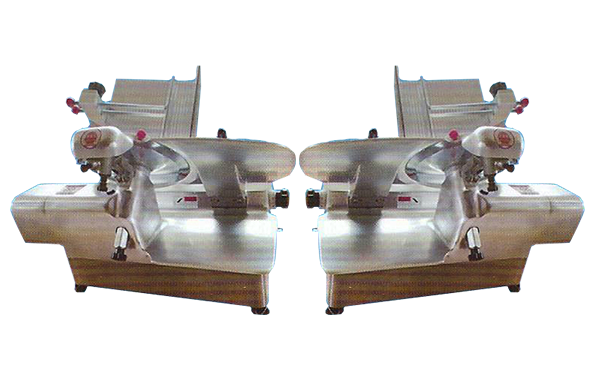

3.Real Shoothing
