1.Details

                    Surface: Galvanizing Thickness≥85μm

                    Packing: Stretch film

                    Size: According to user requirements

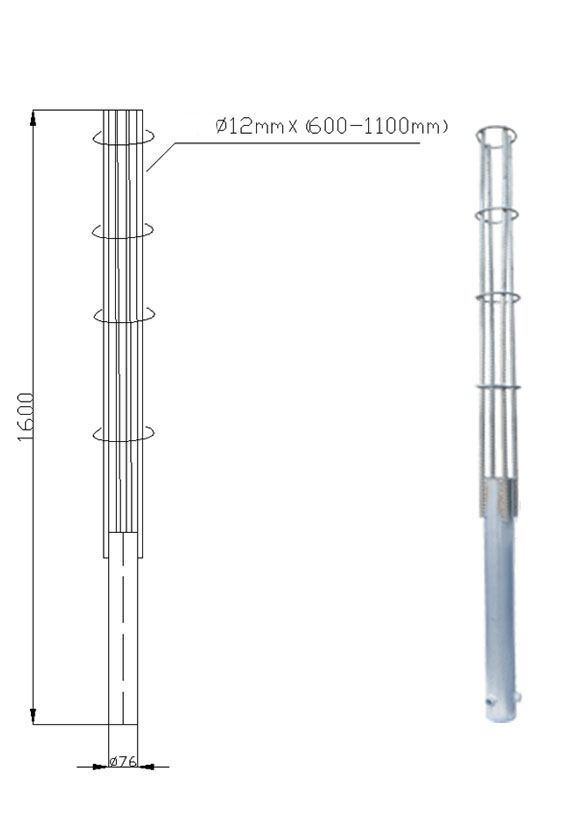

2.Size

                    Length: 1600mm

                    External Diameter: 76mm

                    Thickness: 2.5-4mm

                    Screw Thread Steel: Ф12mm×(600-1100mm)

                    Rib Reinforcement: Ф5mm

3.Application Range

4.Suitable Range

                    Clay stone, etc

                    The hard rock of Gobi needs to be drilled in advance

5.Advantage

                    Don't need digging or filling of the soil, the screw pile machine can be directly got into the ground.

                    Easy installed, convenient and fast.Unaffected by the weather,can be recycled and can be moved to anywhere.

                    Reduce the impact on the environment.

6.Real Shooting
