Power Plug Connection Line

SN:FX-04-004

Link Mode: Push Lock

Rated Current(A): 20A

Protection Level: IP65

Rated Voltage: (AC.V): 250V

Voltage Resistance(AC.V): 2500V/per minute

Insulation Resistance: >500MΩ

Plugging Time: ≥500

Working Temperature: -20℃~80℃

Flame Retardant level: UL94-V0

SHARE
Product Info

  1.Specification Parameter



Link Mode: Push LockRated Current: (A): 20A
                    Protection Level: IP65Rated Voltage(AC.V): 250V

Wire material Specification: 1.5mm²~2.5mm²
Voltage Resistance(AC.V): 2500V/per minute

Insulation Resistance: >500MΩPlugging Time: ≥500

Working Temperature: -20℃~80℃              Flame Retardant level: UL94-V0


  2.Material


                    Shell Insulation Parts: High Performance Engineering Plastics

Conductive Terminal: Berllium Copper Gold Plated 2U"

Hardware Single Chip: SUS 304

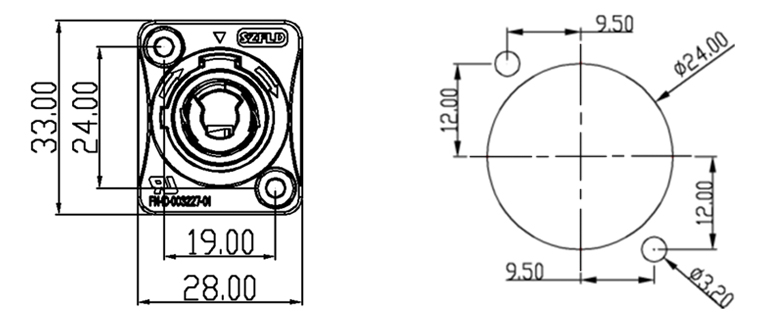

       3.Hole Size

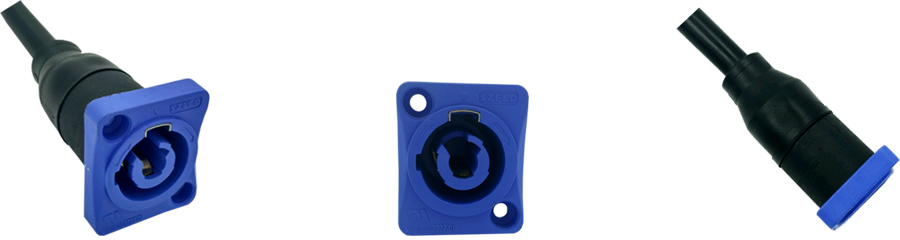

  4.Real Shooting
