FV-Lock Power Plug Connection
SN:FX-04-007
It has a hook type fixture
C13, C14 plug, socket
Operating Temperature: -25 ℃ ~ 70 ℃
Common Terminal: Copper Alloy
Mother Terminal: Phosphorus Bronze
Plastic Material: PVC black
IEC Rating: 10A/250V AC:50Hz
Mandatory Cable: 3 x 0.75 mm, 3 x 1.0 mm, 3 x 1.5mm Cable
Fully Comply With GB17465, IEC 60320, UL 60320-1 standard
SHAREProduct Info
1.Specification Parameter
| | IEC Rating: | 10A/250V AC:50Hz | Certification: | CCC |
| Operating Temperature: | -25℃~70℃ | Common Terminal: | Copper Alloy | |
| Mother Terminal: | Phosphorus Bronze | Plastic Material: | pvc black | |
| Mandatory Cable: | 3×0.75mm, 3×1.0mm, 3×1.5mm cable | Insulation Strength: | 2000V DC L-N; 2000V AC L/N-E; 1Min/50Hz |

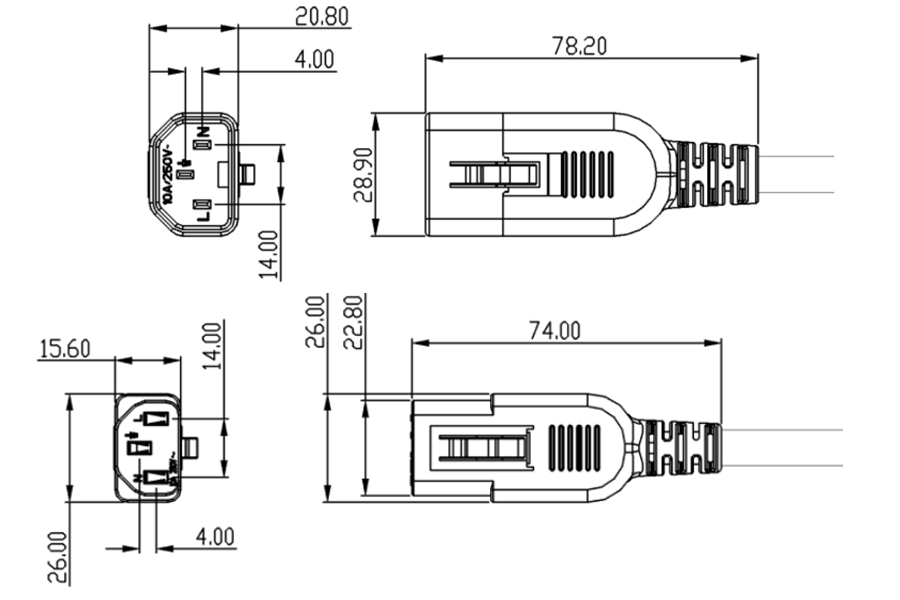

2.Hole Size

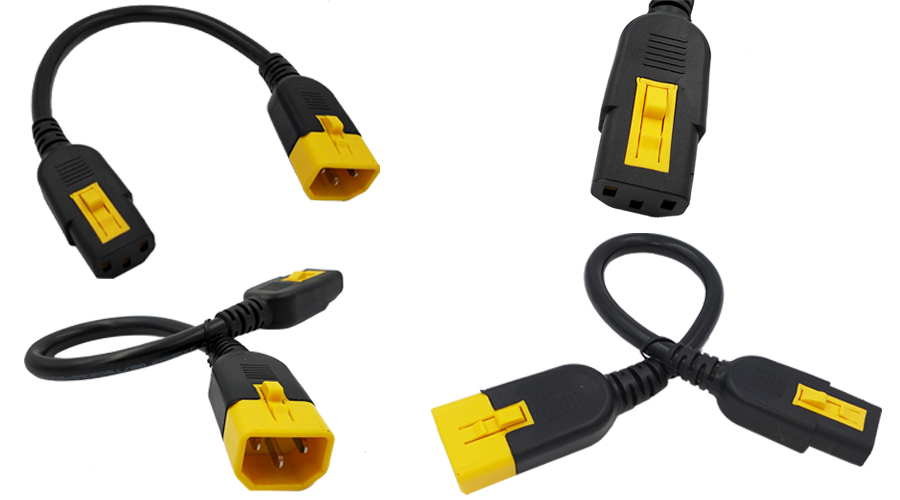

3.Real Shooting
