Austand Powercon cable
SN:FX-04-011
Link Mode: PUSH LOCK
Rated Current(A): 10A
Protection Level: IP65
Rated Voltage(AC.V): 250V
Voltage Resistance(AC.V): 2500V/per minute
Insulation Resistance: >500MΩ
Plugging Time: ≥500
Working Temperature: -20℃~80℃
Flame Retardant level: UL94-V0
SHAREProduct Info
1.Specification Parameter
| Link Mode: | PUSH LOCK | Rated Current(A): | 10A | |
| Protection Level: | IP65 | Rated Voltage(AC.V): | 250V | |
| Wire Material Specification: | 1.5mm²~2.5mm² | Voltage Resistance(AC.V): | 2500V/per minute | |
| Insulation Resistance: | >500MΩ | Plugging Time: | ≥500 | |
| Working Temperature: | -20℃~80℃ | Flame Retardant Level: | UL94-V0 |
2.Material
| Shell Insulation Parts: | High Performance Engineering Plastics | |
| Conductive Terminal: | Beryllium Copper Gold Plated 2U" | |
| Hardware Single Chip: | SUS 304 |

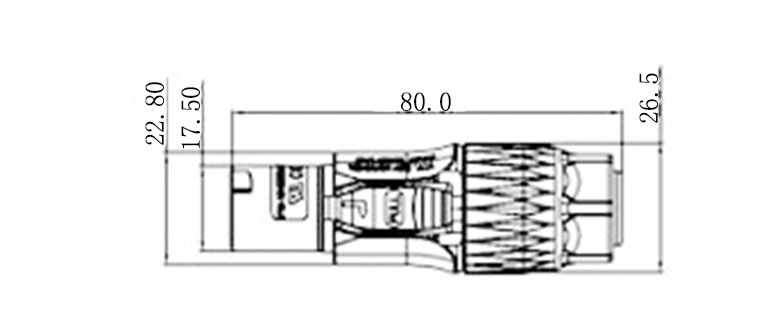

3.Hole Size

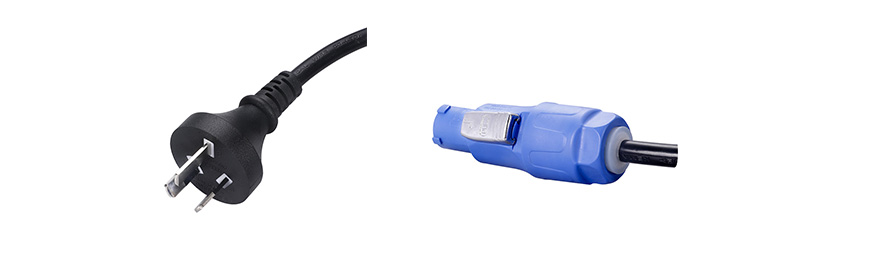

4.Real Shooting

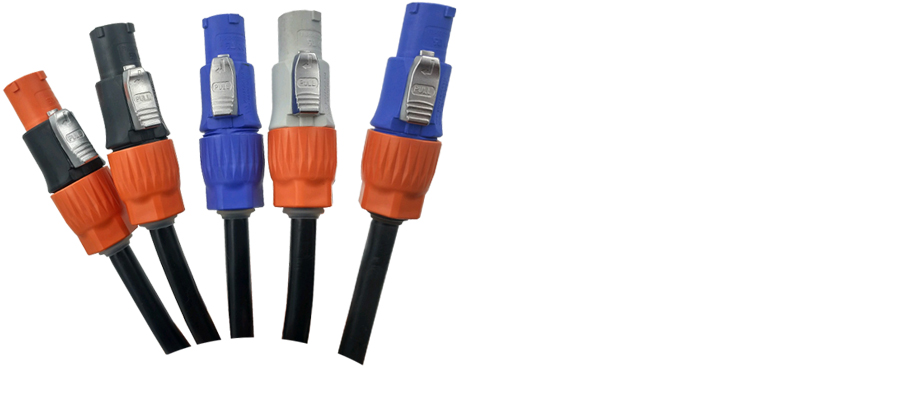

5.More Color
